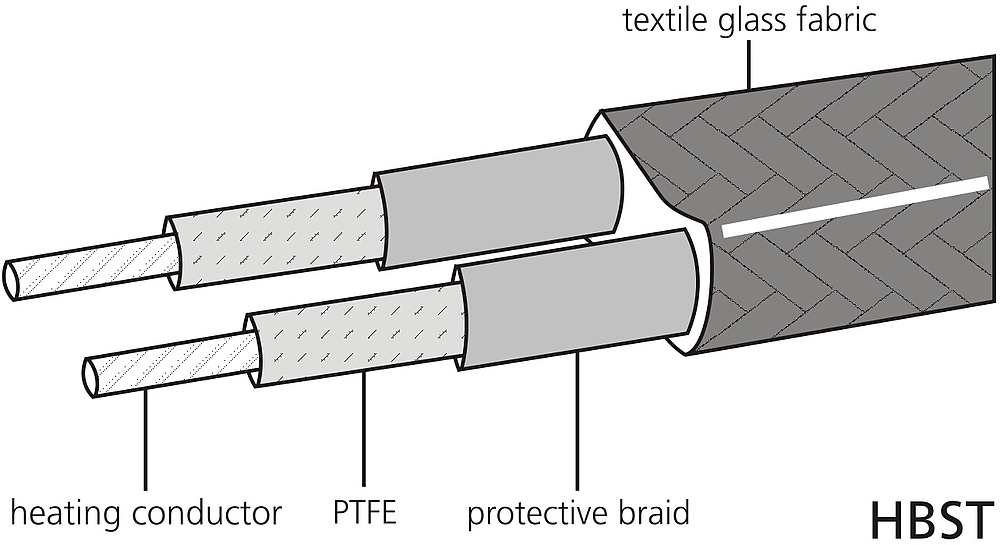

This heating tape available in lengths of more than 30 m has PTFE insulated heating conductors, covered with a metallic protective braid which is connected to the protective earth conductor. The heating conductors are inserted into a robust but flexible textile glass fabric.
Technical Data
| nominal temperature: | 250 °C |
| nominal voltage: | 230 V~ |
| connection cable: | 1.0 m |
| min. bending radius: | 15 mm |
| thickness: | 5 mm |
| breadth: | 25 mm |
| protective braid: | copper, nickel-plated |
| humidity-proof | |
| with connection box |
Order Data
| order no. | meter | watt |
| 020708 | 0.55 | 28 |
| 020701 | 1.0 | 50 |
| 020702 | 2.0 | 100 |
| 020703 | 3.0 | 150 |
| 020704 | 4.0 | 200 |
| 020705 | 5.0 | 250 |
| 020709 | 7.0 | 350 |
| 020762 | 9.0 | 340 |
| 020706 | 10.0 | 480 |
| 020710 | 12.0 | 570 |
| 020707 | 14.0 | 690 |
| 020711 | 17.0 | 820 |
| 020712 | 20.0 | 950 |
| 020713 | 25.0 | 1200 |
| 020714 | 29.0 | 1400 |
| 020715 | 36.0 | 1800 |
Connection box VTH (included in the scope of delivery)
