HBSI - 100 °C - Robust Silicone Heating Tape with High Heat Output

This flexible and hard-wearing heating tape combines a good heat transfer to surfaces with a high specific heat output.

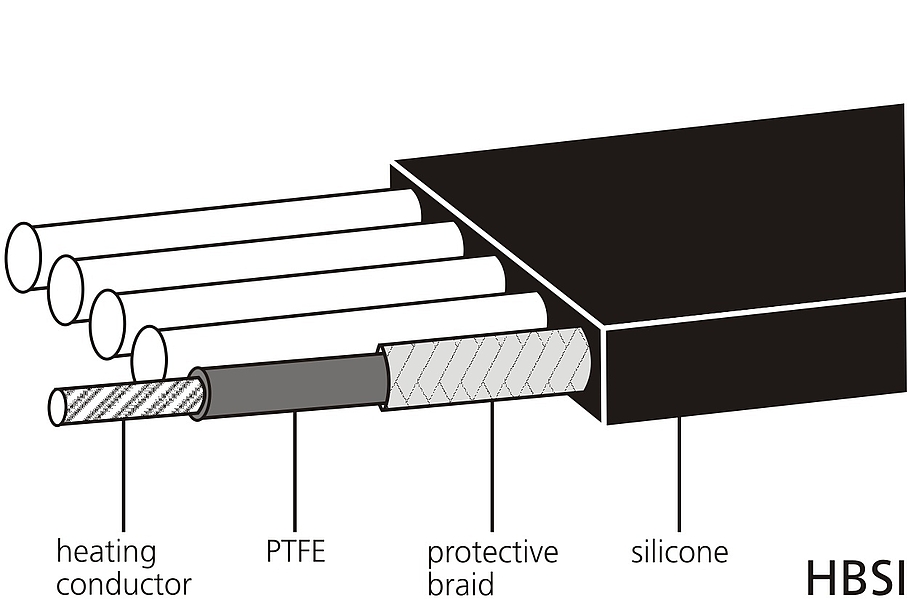

Four parallel heating conductors are embedded in a silicone coating. Each individual heating conductor is electrically insulated with PTFE (250 °C max.) and has a metallic protective braid, which is connected to the protective earth conductor.

Technical Data

nominal temperature: 200 °C
nominal voltage: 230 V~
connection cable: 1.5 m
min. bending radius: 20 mm
thickness: 5 mm
breadth: 24 mm
protective braid: copper, nickel-plated
humidity-proof
with connection box

Other lengths and power ratings are available at short notice.

Order Data

order no. meter watt
020601 0.8 125
020602 1.0 100
020603 1.5 70
020604 1.7 235
020605 2.0 200
020606 2.8 320
020607 3.0 300
020608 4.0 400
020609 5.0 500
020610 6.0 600
020611 10.0 1000
020612 12.0 1200
020613 15.0 970
020614 20.0 2000


Connection box VTH (included in the scope of delivery)
