HBSIE - 200 °C - Slim Silicone Heating Tape

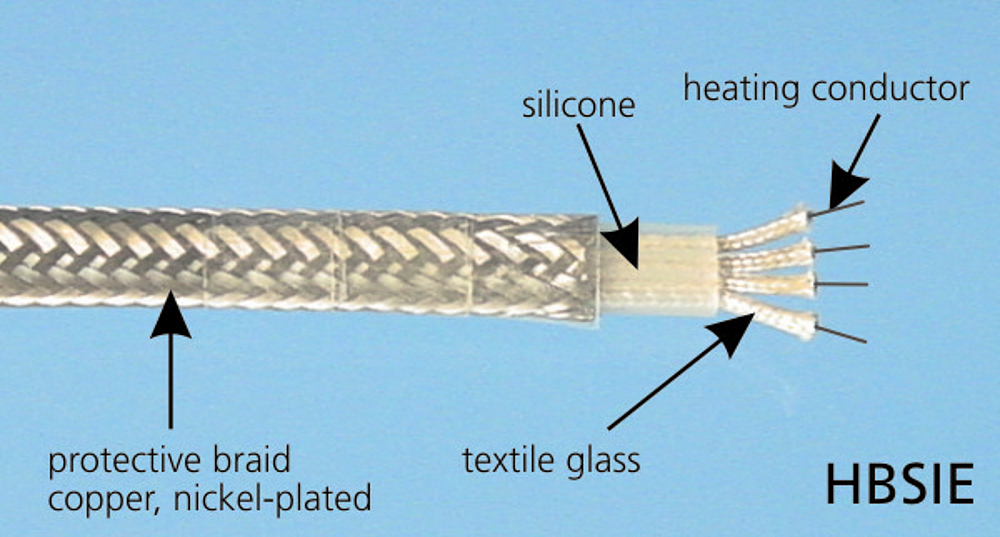

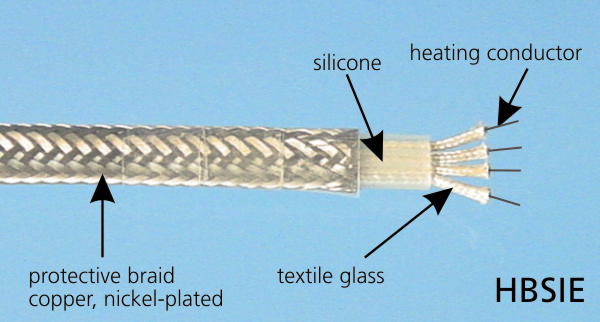

This silicone heating tape is only 12 mm wide and very flexible. Four parallel heating conductors, individually braided with textile glass, are embedded in a silicone coating. The construction has a nickel-plated copper protective braiding which is connected to the protective earth conductor.

Technical Data

nominal temperature: 200 °C
nominal voltage: 230 V~
connection cable: 1.5 m
min. bending radius: 12 mm
thickness: 6.4 mm
breadth: 12 mm
protective braid: stainless steel
humidity-proof
with connection box

Other lengths and power ratings are available at short notice.

Order Data

order no. meter watt
020682 2.0 165
020683 3.0 240
020684 4.0 400
020686 6.0 480
020689 9.0 710


Horst Heating Tape HBSIE
HBSIE - 200 °C - Slim Silicone Heating Tape

Connection box VTH (included in the scope of delivery)
