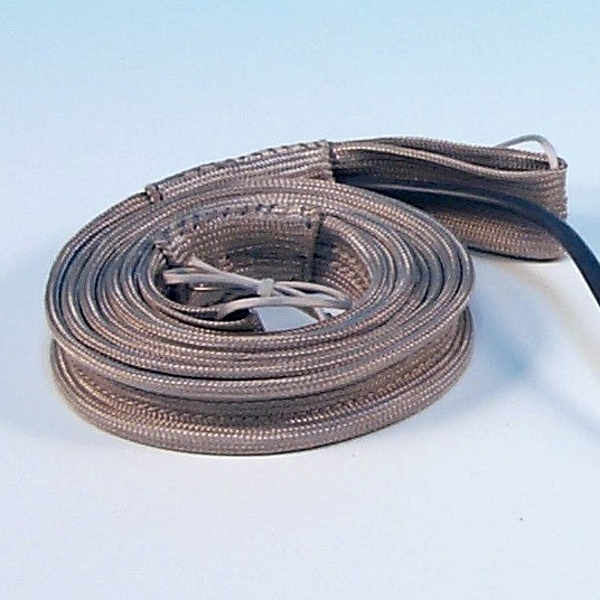

HBS - 450 °C/350 °C - Smooth Heating Tape with Protective Braid

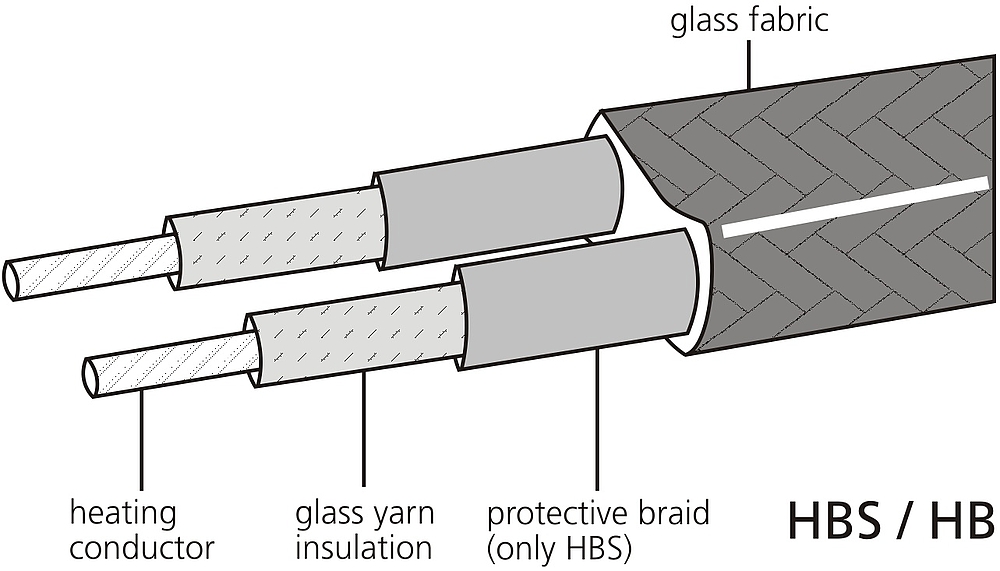

This versatile heating tape meets high requirements regarding heating power and operating temperature in a dry environment. It adapts perfectly, is flexible and consists of a multi-layer glass-yarn insulation and a metallic protective braid around the heating conductor, which is connected to the protective earth conductor.

Technical Data

nominal voltage: 230 V~
connection cable: 0.5 m
thickness: 5.5 mm
breadth: 30 mm
min. bending radius: 10 mm
protective braid: nickel
not humidity-proof
with connection box

Other lengths and power ratings are available at short notice.

Order Data

order no. meter watt nominal temperature
020301 0.5 100 450 °C
020302 1.0 250 450 °C
020303 1.5 350 450 °C
020304 2.0 500 450 °C
020305 2.5 600 450 °C
020306 3.0 800 450 °C
020311 4.0 900 450 °C
020307 5.0 1250 450 °C
020308 7.0 1550 450 °C
020309 10.0 2000 350 °C
020310 15.0 3000 350 °C

Horst Heating Tape HBS
HBS - 450 °C/350 °C - Smooth Heating Tape with Protective Baid

Connection box VTH (included in the scope of delivery)
