HB - 450 °C/350 °C - Heating Tape with Textile Glass Insulation, for Small Bending Radii

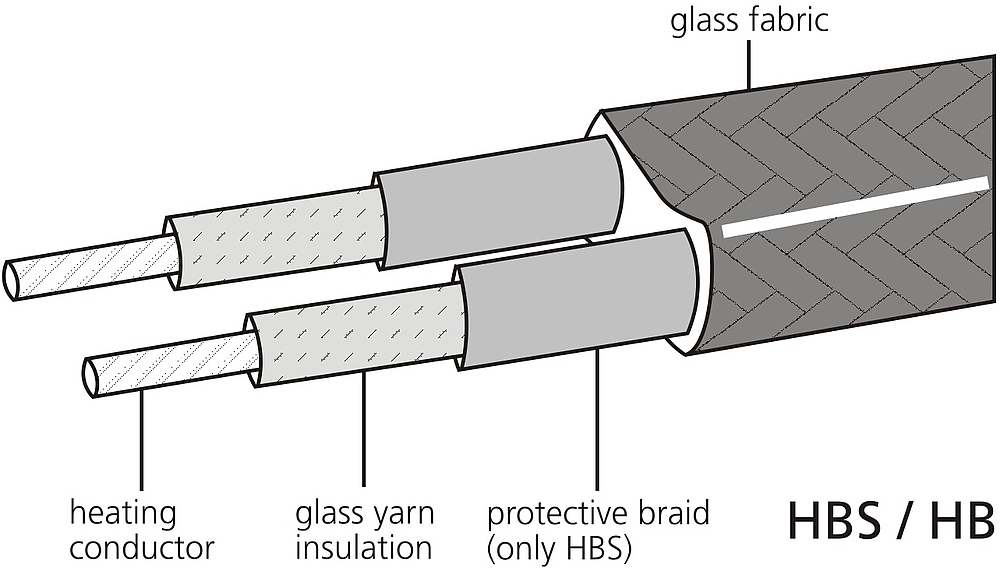

Due to the fact that it has no protective braid, the HB heating tape, which is otherwise identical to the HBS, is particularly flexible and allows very small winding radii.

Technical Data

nominal voltage: 230 V~
connection cable: 0.5 m
thickness: 5.5 mm
breadth: 30 mm
min. bending radius: 6 mm
not humidity-proof
with connection box

Other lengths and power ratings are available at short notice.

Order Data

order no. meter watt nominal temperature
020201 0.5 100 450 °C
020202 1.0 250 450 °C
020203 1.5 350 450 °C
020204 2.0 500 450 °C
020205 2.5 600 450 °C
020206 3.0 750 450 °C
020211 4.0 900 450 °C
020207 5.0 1250 450 °C
020210 6.0 1250 450 °C
020208 7.0 1550 450 °C
020209 10.0 2000 350 °C

Order Data

order no. meter watt nominal temperature
020201 0.5 100 450 °C
020202 1.0 250 450 °C
020203 1.5 350 450 °C
020204 2.0 500 450 °C
020205 2.5 600 450 °C
020206 3.0 750 450 °C
020211 4.0 900 450 °C
020207 5.0 1250 450 °C
020210 6.0 1250 450 °C
020208 7.0 1550 450 °C
020209 10.0 2000 350 °C

HB - 450 °C/350 °C - heating tape with textile glass insulation, for small bending radii

Connection box VTH (included in the scope of delivery)
