HBRT - 220 °C max. Ambient Temperature

Self-Limiting Heating Tape

Technical Data

max. allowed ambient temperature: 220 °C energized, 250 °C de-energized
nominal voltage: 230 V~
min. bending radius: 35 mm
breadth: 12.1 or 14.4 mm (type 021555)
thickness: 5.4 or 5.6 mm (type 021555)

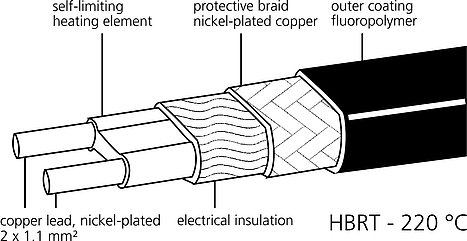

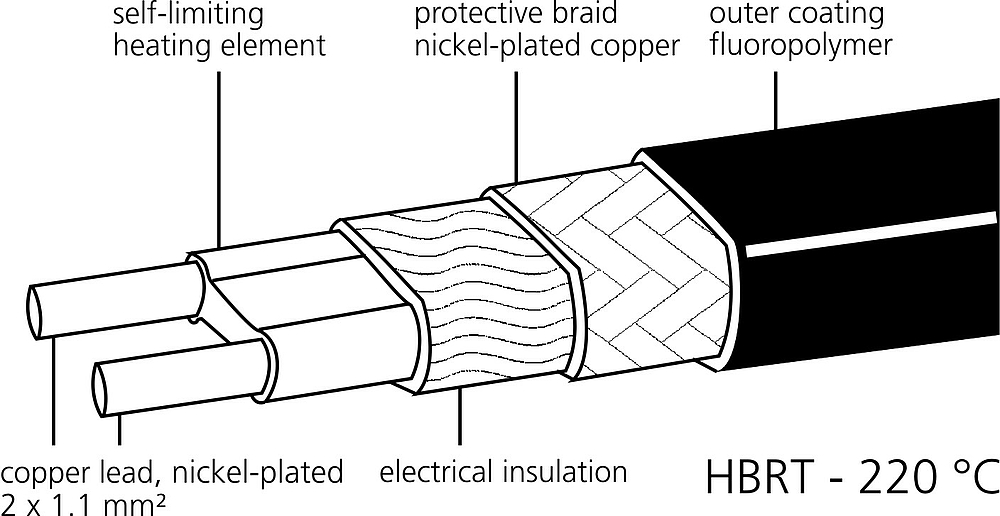

protective braid: copper, nickel-plated
outer mantle: fluoropolymer
additional length for finishing: 200 mm
humidity-proof

Order Data

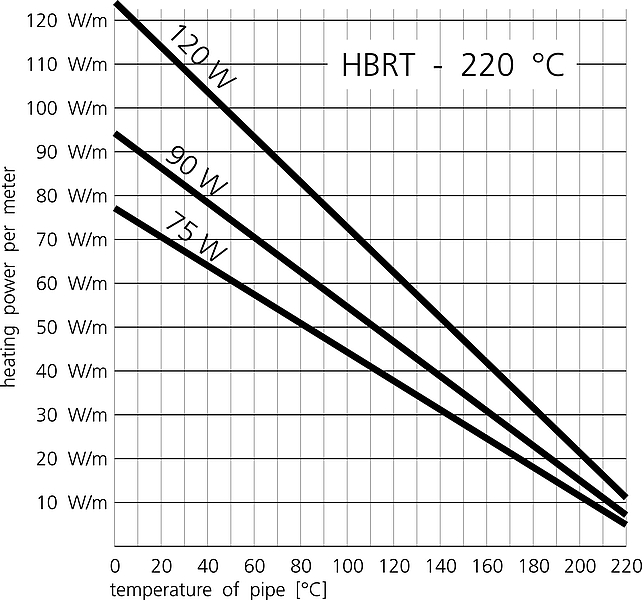

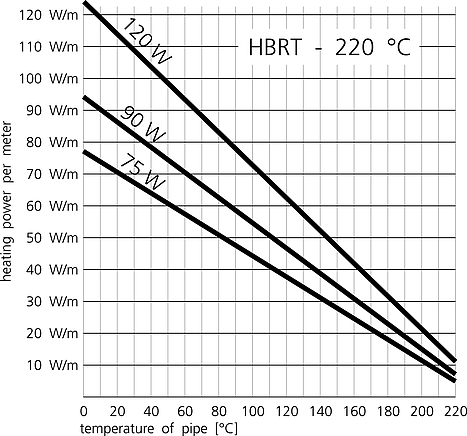

order no. Watt/m reference temp. temperature class
021543 75 10 °C T2 (300 °C), referring to ATEX directive
021546 90 10 °C T2 (300 °C), referring to ATEX directive
021555 120 10 °C T2 (300 °C), referring to ATEX directive

Finishing Set HBRT 220

Please consider ordering additional heating tape length for finishing and if necessary for the distance from the component to be heated to the connection box!

order no.
021662 Assembly set for the versions < 120 watt/metre for direct insertion into a housing. Consisting of silicone moulded parts, small parts for the electrical connection, as well as a cable gland M20, with which the tape is guided into a suitable enclosure (enclosure not included in the scope of delivery).
021664 Assembly set for the 120 watt/metre version for direct insertion into a housing. Consisting of silicone moulded parts, small parts for the electrical connection, as well as a cable gland M25, with which the tape is guided into a suitable enclosure (enclosure not included in the scope of delivery).

Factory-Made Finishings HBRT 220

order no.
021707 Factory-made finish with connection box. The heating tape is connected with cable glands to a robust rubber hose line in a high-quality, glass-fiber-reinforced plastic housing. Housing dimensions: 110 × 110 × 67 mm, connection cable type H 07 RN-F 3 G 1.5 02 17 19Factory-made direct connection heating tape - power supply line (FEP cable, length 2 m)
021720 Factory-made direct connection heating tape - power supply line (FEP cable, length 2 m). Max. allowed ambient temperature: 180 °C
