HBRT - 200 °C max. Ambient Temperature

Self-Limiting Heating Tape

Technical Data

max. allowed ambient temperature: 200 °C energized, 225 °C de-energized
nominal voltage: 230 V~
min. bending radius: 35 mm
breadth: 11.5 mm
thickness: 5.2 mm

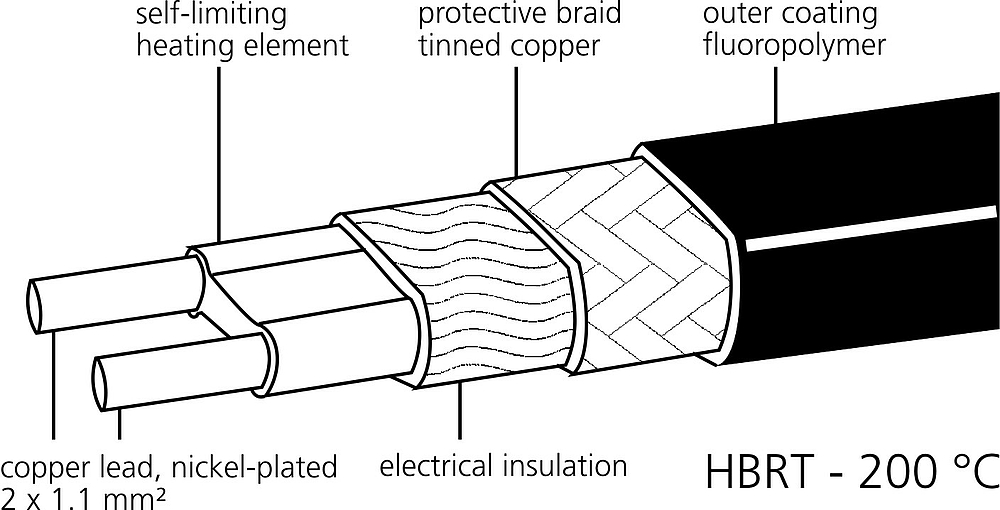

protective braid: copper, tinned
outer mantle: fluoropolymer
additional length for finishing: 200 mm
humidity-proof

Order Data

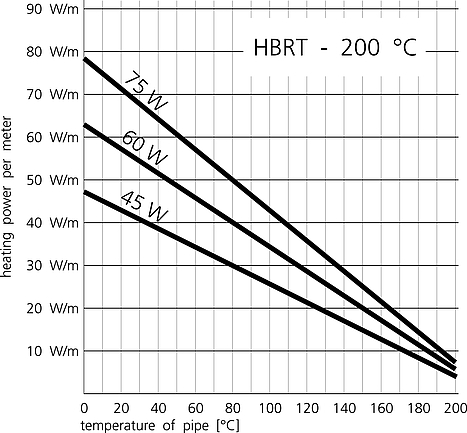

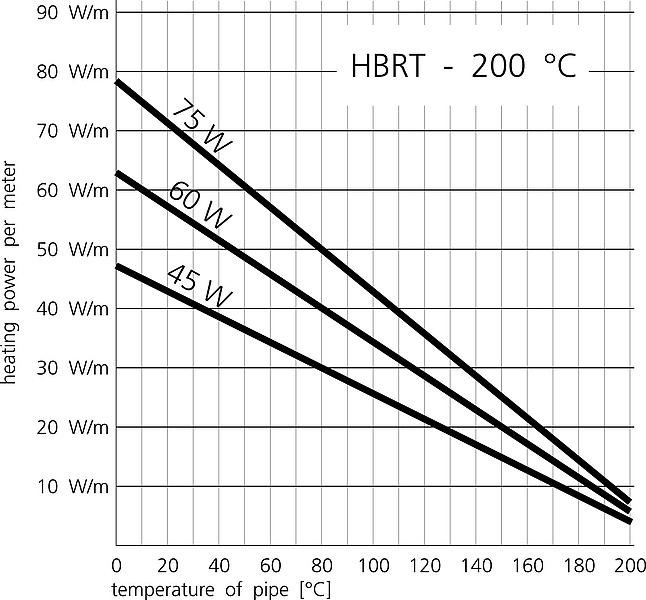

order no. Watt/m reference temp. temperature class
021523 45 10 °C T3 (200 °C), referring to ATEX directive
021526 60 10 °C T3 (200 °C), referring to ATEX directive
021528 75 10 °C T2 (300 °C), referring to ATEX directive

Finishing Set HBRT 200

Please consider ordering additional heating tape length for finishing and if necessary for the distance from the component to be heated to the connection box!

order no.
021605 Finishing set for direct entry into connection. Consisting of silicone molded parts, small parts for the electrical connection and one cable gland M20 for the insertion of the heating tape into a suitable connection box. (Connection box not in scope of delivery)

Factory-Made Finishings HBRT 200

order no.
021705 Factory-made finish with connection box. The heating tape is connected with cable glands to a robust rubber hose line in a high-quality, glass-fiber-reinforced plastic housing. Housing dimensions: 110 × 110 × 67 mm, connection cable type H 07 RN-F 3 G 1.5
021719 Factory-made direct connection heating tape - power supply line (FEP cable, length 2 m)
