HBRC - 85 °C max. Ambient Temperature

Self-Limiting Heating Tape

Technical Data

max. allowed ambient temperature: 85 °C energized, 85 °C de-energized
nominal voltage: 230 V~
min. bending radius: 35 mm
breadth: 12.6 mm
thickness: 5.6 mm

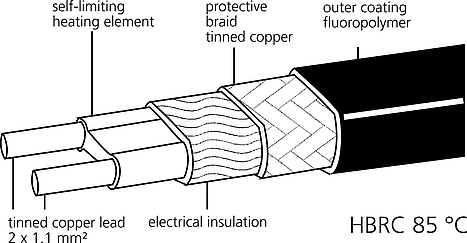

protective braid: copper, tinned
outer mantle: fluoropolymer
additional length for finishing: 150 mm
humidity-proof

Order Data

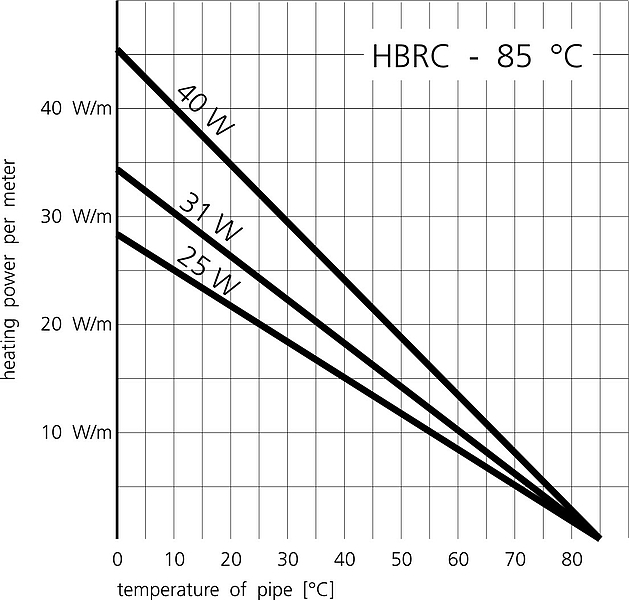

order no. Watt/m reference temp. temperature class
021444 25 10 °C T6 (85 °C), referring to ATEX directive
021446 31 10 °C T4 (135 °C), referring to ATEX directive
021448 40 10 °C T4 (135 °C), referring to ATEX directive

Finishing Sets HBRC

Please consider ordering additional heating tape length for finishing and if necessary for the distance from the component to be heated to the connection box!

order no.
021616 Finishing set for direct entry into connection. Consisting of heat shrinkable tubing sections, small parts for the electrical connection and one cable gland M20 (incl. adapter for M25) for the insertion of the heating tape into a suitable connection box. (Connection box not in scope of delivery)
021618 Finishing set for direct connection heating tape - power supply line screw technology - RADOX® hose line, length 2 m

Factory-Made Finishing HBRC

order no.
021716 Factory-made finish with connection box. The heating tape is connected with cable glands to a robust rubber hose line in a high-quality, glass-fiber-reinforced plastic housing. Housing dimensions: 110 × 110 × 67 mm, connection cable type H 07 RN-F 3 G 1.5
021718 Factory-made direct connection heating tape - power supply line (RADOX® hose line, length 2 m)


HBRC factory-made finish order no. 021716
