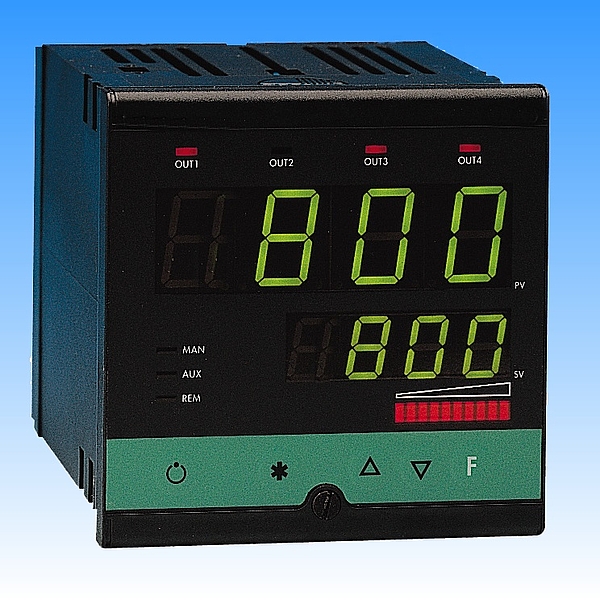

HT 56 - Self-Optimizing Microprocessor Program Regulator

HT 56 has the characteristics of HT 55, which are required for a comfortable installation and an exact operation of a control circuit. With the following functions, even more complex applications can be operated:

• external setpoint adjustment via current or voltage signal

• 2 configurable analog outputs for reading different process values for e.g. master/slave combinations to control other devices.

• 1 - 4 setpoint programs for up to 12 steps. One "step" consists of a temperature ramp and the hold time. The setpoint programs can be chosen via 2 digital inputs and can be operated, e.g. with the commands "start", "stop" and "reset".

Optionally the regulator can also be operated using a standard RS 232/485 interface or with a service software and a connection cable (option) for the configuration.

Technical Data

controller Type two-position / three-position regulator
regulating characteristics P/ PD/PID
nominal voltage 100 ... 240 V AC
measurement values input 15 different thermoelements, Pt 100, DC linear signals, custom linearization with 32 segment
regulator outputs 2 x relay, 1 x logic, configurable
programmable functions self-optimization, auto optimization, soft start
power control logic output 11 Vdc, Rout = 220 Ohm (20 mA, max. 6 V) relay 5 A / 250 V
program function 16 steps arranged in max. 4 programs
accuracy class 0.2 %
regulation boost -100 ... 100 %
protect. category front cover IP 65 (DIN 40 050)
cross section clamps 2.5 mm²
case dimensions (hxbxd) 96 mm x 96 mm x 125 mm
Data for HT 560
switching power 3600 W AC 1 (16 A)
protection class I
protection category IP 30 (DIN 40 050)
housing table housing
dimensions housing 260 mm x 180 mm x 240 mm

Order Data

order no. product
065610 HT 56
065660 current transformer
065650 connecting cable with service software for Windows

Order Data

order no. product
065610 HT 56
065660 current transformer
065650 connecting cable with service software for Windows
