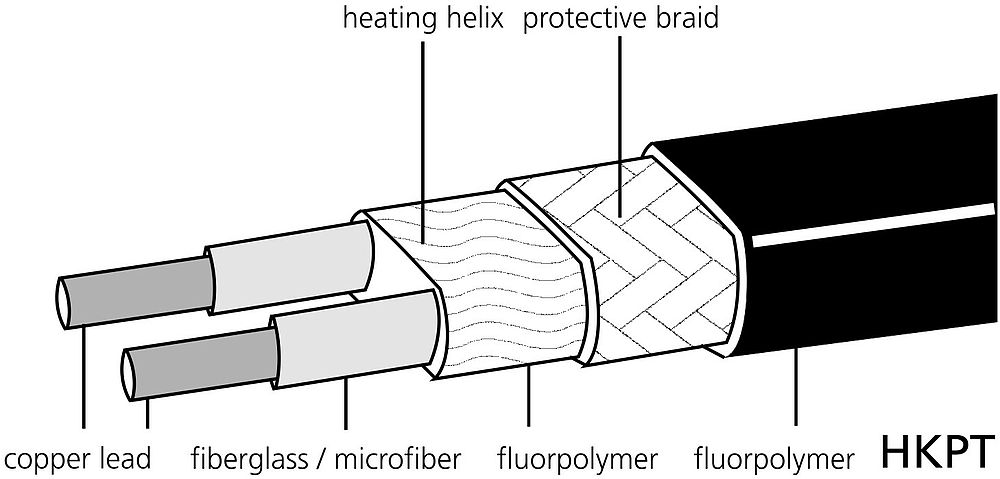

HKPT - 250 °C - Robust Heating Cable for High Working Temperatures

HKPT combines high temperature stability and extreme chemical resistance of its
Fluorpolymer mantle.

Technical Data

nominal temperature: 250 °C
nominal voltage: 230 V~
heating power rate: 30 W/m
segment length: 0,67 m
min. bending radius: 35 mm
thickness: 7.5 mm
breadth: 10.3 mm
protective braid: copper, nickel-plated

Order Data

order no. Watt/m
021212 30 W/m

Please note that the total length has to be divisible by 0.67. For finishing with finishing set order no. 021655, an additional 0.67-m-segment is required. This addition is included if you order a heating cable with ready-made finishing order no. 021235.

HKPT Finishing Set

order no.
021655 heat shrinkable tubing sections, one flat-sealing cable gland for the housing inlet, and small parts for the electrical connection

Ready-Made Finishing HKPT

order no.
