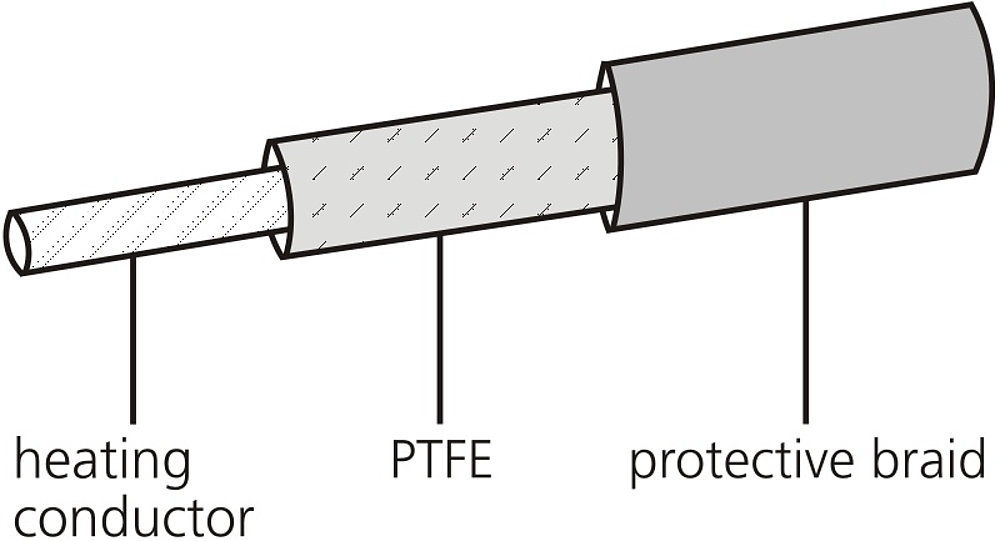

This thin and very flexible heating cable is electrically insulated with PTFE and covered with a metallic protective braid, which is connected to the protective earth conductor.
Available in lengths of 1 m up to more than 70 m, HST is suitable for a wide range of applications.
Technical Data
| nominal temperature: | 250 °C |
| nominal voltage: | 230 V~ |
| connection cable: | 1.5 m PTFE cable |
| min. bending radius: | 10 mm |
| diameter: | 2.5 - 3.5 mm |
| protective braid: | copper, nickel-plated |
| humidity-proof |
Order Data
| order no. | meter | watt |
| 020821 | 1.1 | 30 |
| 020822 | 2.0 | 50 |
| 020823 | 4.0 | 100 |
| 020885 | 5.0 | 120 |
| 020801 | 5.5 | 125 |
| 020802 | 6.0 | 150 |
| 020803 | 8.0 | 200 |
| 020804 | 9.0 | 180 |
| 020824 | 10.0 | 250 |
| 020805 | 12.0 | 250 |
| 020812 | 14.0 | 350 |
| 020807 | 20.0 | 480 |
| 020825 | 24.0 | 570 |
| 020826 | 28.0 | 690 |
| 020808 | 30.0 | 635 |
| 020827 | 34.0 | 820 |
| 020828 | 40.0 | 950 |
| 020829 | 50.0 | 1200 |
| 020830 | 58.0 | 1400 |
| 020831 | 72.0 | 1800 |
