HSS - 450 °C / 350 °C - Heating Cable with Additional Protective Braid

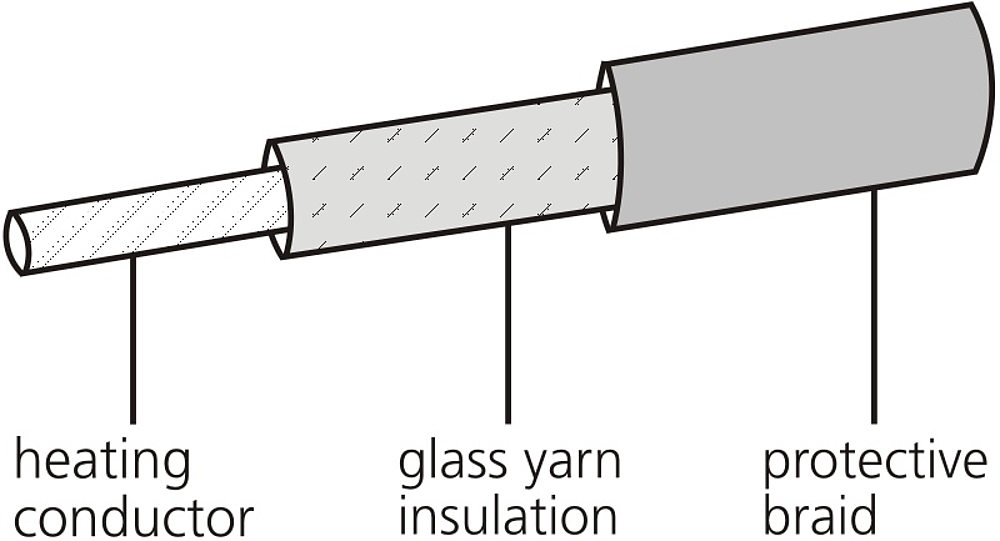

This flexible heating cable is similar to type HS but has an additional protective braid, which is connected to the protective earth conductor.

Technical Data

nominal voltage: 230 V~
connection cable: 1.5 m
min. bending radius: 6 mm
diameter: 3.5 - 4.5 mm
protective braid: nickel
not humidity-proof

Other lengths and power ratings are available at short notice.

Order Data

order no. meter watt nominal temp.
020901 0.6 75 450 °C
020902 1.0 100 450 °C
020903 2.0 250 450 °C
020904 3.0 350 450 °C
020905 4.0 500 450 °C
020906 5.0 600 450 °C
020907 6.0 800 450 °C
020910 10.0 1250 450 °C
020911 15.0 1500 350 °C

Order Data

order no. meter watt nominal temp.
020901 0.6 75 450 °C
020902 1.0 100 450 °C
020903 2.0 250 450 °C
020904 3.0 350 450 °C
020905 4.0 500 450 °C
020906 5.0 600 450 °C
020907 6.0 800 450 °C
020910 10.0 1250 450 °C
020911 15.0 1500 350 °C
