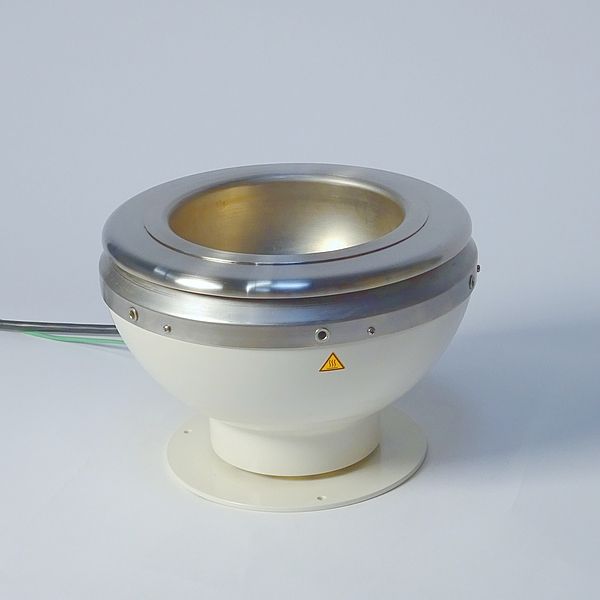

HR - 500 °C Heating Mantle with Moisture-Proof Heating Trough

The hemispherically formed heating surface is made of corrosion-proof and thermal conductive material. It is liquid-tight and earthed.

This heating mantle has to be connected to the temperature regulating device with two connection lines: one for the thermocouple and one for the two heating zones.

Robust aluminum desktop housing with high-quality powder coating.

Technical Data

nominal temperature: 500 °C
nominal voltage: 230 V~
heating zones: 2
safety class: I
protection category: IP 32 (EN 60529)
connection: wire end sleeves

Order Data

order no. ml watt
016303 100 150
016304 250 220
016305 500 320
016306 1000 500
016307 2000 720
016309 4000 1200
016311 6000 1500
