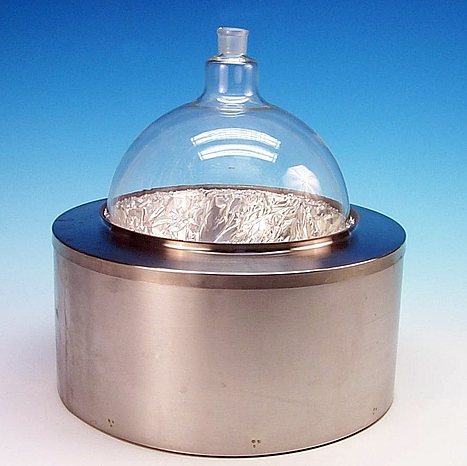

HMA-I - 400 °C - Heating Mantle for Industrial Use

Due to its solid design, this heating mantle for round bottomed flasks can be used in the production field as well as under working conditions with great demands on mechanical stability. The sealed heating trough is formed in one piece and is form-fittingly connected to the edge of the casing. It is moisture-proof, guarantees a homogenous heat distribution and has a protective earthing. The complete outer casing is made of 1.4571 stainless steel.

The heating mantle has to be to operated temperature-controlled. Our HT MC11 temperature regulator  is especially suitable for this purpose, however, it is also possible to use other already existing appropriate devices.

• 2 temperature sensors: 1 x NiCr-Ni for temperature control of the heating surface, 1 x Pt100 for additional temperature control or limitation
• For the electrical connection: IP 65 plastic casing for wiring, with terminals for  mains and sensor connection. The terminal box is connected to the heating mantle with an insulated plastic hose (length 0.6 m).

Technical Data

nominal temperature: 400 °C
nominal voltage: 230 V~
protection category: IP 54 (EN 60529)
safety class: I
mains cable: 0.6 m

Order Data

order no. liter Watt
013311 6 1500
013312 10 1600
013313 20 2200
