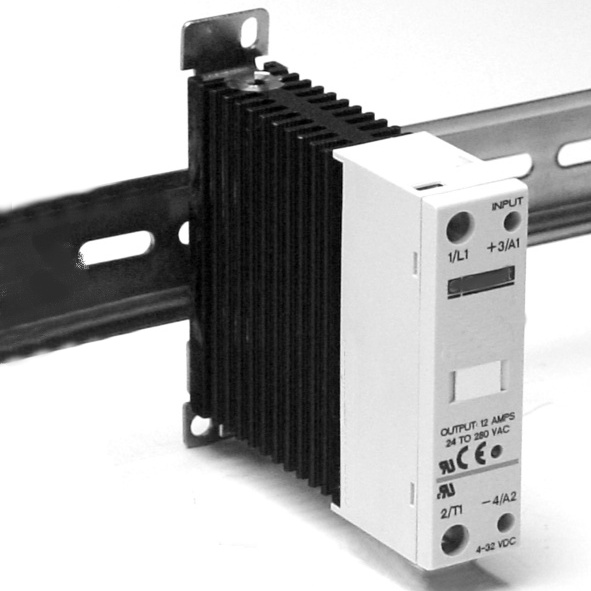

HER 20 - Solid State Relay with Heat Sink for DIN Rail

This compact electronic single-phase relay switches loads up to 30 A. It is non-wearing and can be mounted easily on a DIN rail or a mounting plate.

The relay must always operate in combination with a suitable external short-circuit protection fuse.

Accessories: ST 10 fuse carrier

Technical Data HER 20 A

load voltage: 600 VAC
load corrent max.: 20 A AC 1
control voltage: 180 ... 280 V AC/DC
operating temperature: -20 °C ... +80 °C
dimensions: 89 x 22.5 x 121 mm

zero voltage indication, LED display for input status

Technical Data HER 20 D

load voltege: 600 VAC
load corrent max.: 30 A AC 1
control voltage: 4 ... 32 VDC
operating temperature: -30 °C ... +70 °C
dimensions: 103 x 22.5 x 103 mm

zero voltage indication, LED display for input status

Order Data

order no. type control voltage
069014 HER 20 A 180 .. 280 V AC/DC
069045 HER 20 D 4 .. 32 VDC
