Armatures

In the basic configuration our heating hoses have armatures made of machining steel. We also offer armatures made of stainless steel (1.4301 / 1.4571) or other materials. The durability of the heating hose and armature should correspond. On request, the heating hoses can be equipped with loose flanges or integral flanges, according to DIN and ASA.

Please consider that armatures narrow the passage of the hose! See table on right.

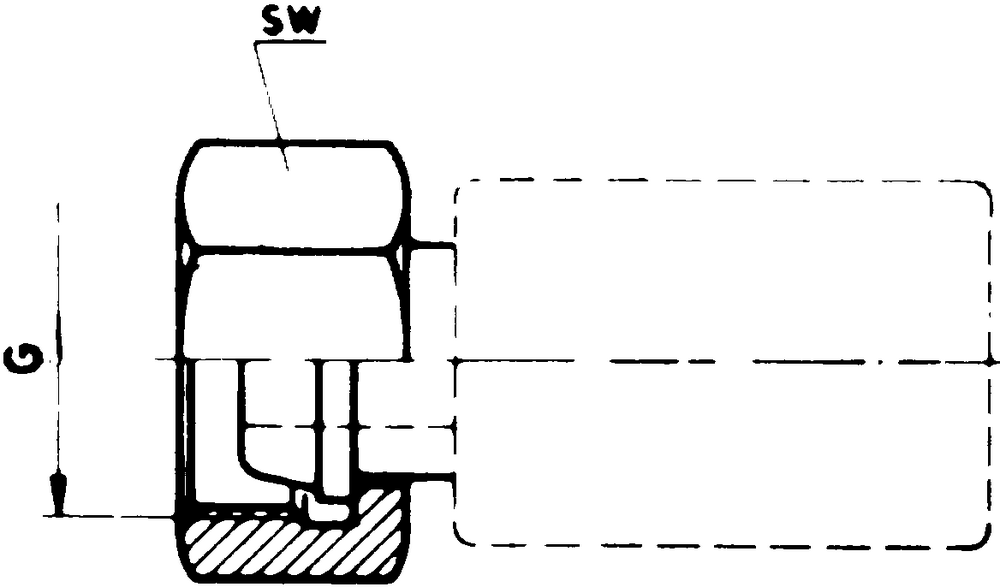

DKR

Universal conical nipple, union nut inch (BSP)

RSL/RSS

pipe connection, light/heavy duty series for clamp ring connection

DKL/DKM/DKS

Universal conical nipple, union nut metric thread, light/heavy duty series

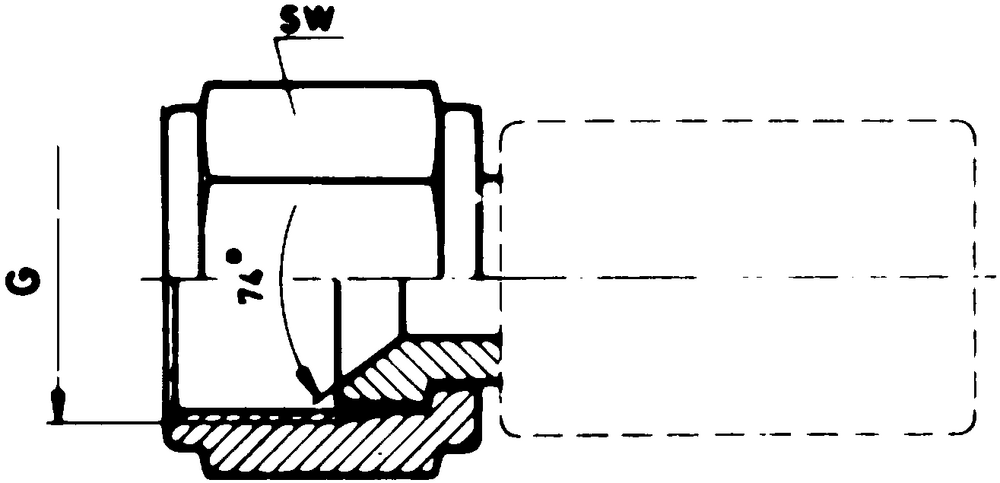

DKJ

Nipple with 74° conus JIC, union nut UNF thread

BDN

Flanged nut, flat packing, union nut metric/inch



Narrowing by Armatures

nominal diameter DN inner diameter armature
4 3.0 mm
6 4.5 mm
8 6.0 mm
10 7.5 mm
12 10.0 mm
16 12.5 mm
20 16.0 mm
25 20.1 mm
32 27.5 mm
40 31.5 mm
