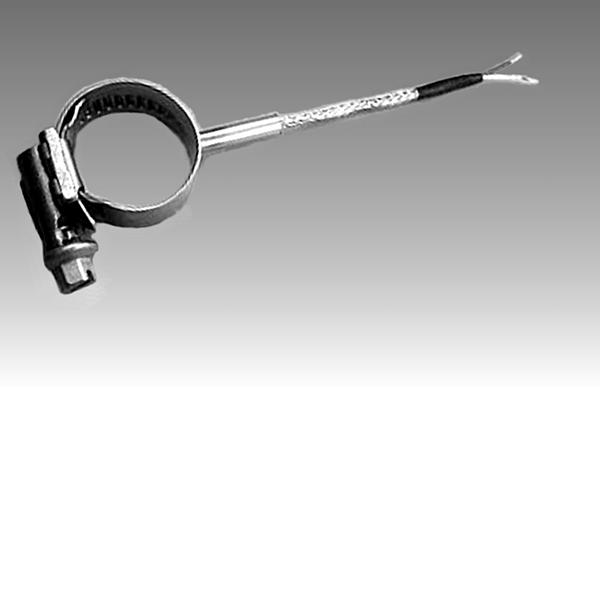

For the temperature measurement on pipes up to +350 °C.
The tip has direct contact to the pipe for fast and exact measuring.
- tolerance class B acc. to DIN EN 60751
- connection line 2 m with wire end sleeves
- stainless steel screw clamp
- without plug
Order Data
| order no. | insulation connection line | temp. range | span Ø |
| 070260 | PTFE | -50 ... +250 °C | 16 - 25 mm |
| 070262 | PTFE | -50 ... +250 °C | 25 - 40 mm |
| 070264 | PTFE | -50 ... +250 °C | 40 - 80 mm |
| 070266 | PTFE | -50 ... +250 °C | 80 - 100 mm |
| 070270 | glass fiber | -50 ... +350 °C | 16 - 25 mm |
| 070272 | glass fiber | -50 ... +350 °C | 25 - 40 mm |
| 070274 | glass fiber | -50 ... +350 °C | 40 - 80 mm |
| 070276 | glass fiber | -50 ... +350 °C | 80 - 100 mm |
