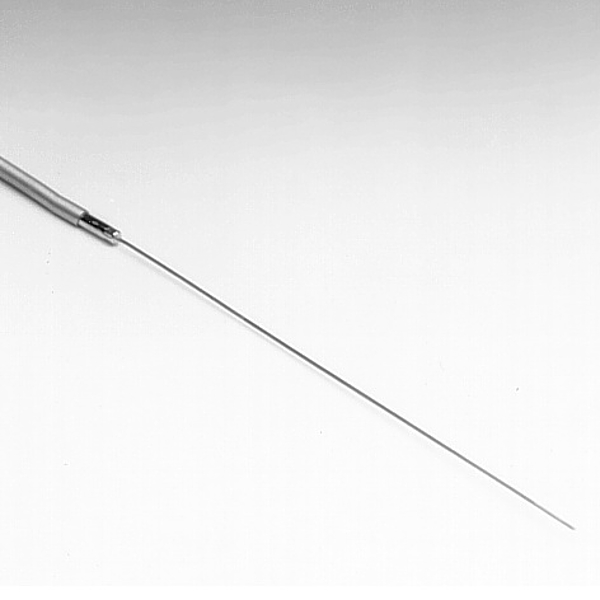

Mineral insulated, bendable tip, solderable.
Particularly suitable for high temperatures, liquids and aggressive environments.
- 2 m connecting cable
Order Data: Mantle Thermoelements with Plug *
| order no. | sensor type | temp. max. | dimensions | coat material |
| 070206 | NiCr-Ni (K) | 1000 °C | Ø 1.0 x 500 mm | 2.4816 (Inconel) |
| 070229 | NiCr-Ni (K) | 1000 °C | Ø 1.0 x 1000 mm | 2.4816 (Inconel) |
| 070207 | NiCr-Ni (K) | 1000 °C | Ø 1.5 x 80 mm | 2.4816 (Inconel) |
| 070225 | NiCr-Ni (K) | 1000 °C | Ø 1.5 x 150 mm | 2.4816 (Inconel) |
| 070202 | NiCr-Ni (K) | 1000 °C | Ø 1.5 x 250 mm | 2.4816 (Inconel) |
| 070216 | NiCr-Ni (K) | 1000 °C | Ø 1.5 x 500 mm | 2.4816 (Inconel) |
| 070208 | NiCr-Ni (K) | 1000 °C | Ø 1.5 x 1000 mm | 2.4816 (Inconel) |
| 070213 | NiCr-Ni (K) | 1000 °C | Ø 1.5 x 1500 mm | 2.4816 (Inconel) |
| 070201 | Fe-CuNi (J) | 600 °C | Ø 1.5 x 250 mm | 1.4541 / 1.4571 |
Order Data: Mantle Thermoelements without Plug
| order no. | sensor type | temp.max. | Fühlermaße | Mantelwertstoff |
| 07 02 09 | NiCr-Ni (K) | 1000 °C | Ø 1,0 x 500 mm | 2.4816 (Inconel) |
| 07 02 28 | NiCr-Ni (K) | 1000 °C | Ø 1,0 x 1000 mm | 2.4816 (Inconel) |
| 07 02 10 | NiCr-Ni (K) | 1000 °C | Ø 1,5 x 80 mm | 2.4816 (Inconel) |
| 07 02 24 | NiCr-Ni (K) | 1000 °C | Ø 1,5 x 150 mm | 2.4816 (Inconel) |
| 07 02 04 | NiCr-Ni (K) | 1000 °C | Ø 1,5 x 250 mm | 2.4816 (Inconel) |
| 07 02 15 | NiCr-Ni (K) | 1000 °C | Ø 1,5 x 500 mm | 2.4816 (Inconel) |
| 07 02 11 | NiCr-Ni (K) | 1000 °C | Ø 1,5 x 1000 mm | 2.4816 (Inconel) |
| 07 02 05 | NiCr-Ni (K) | 1000 °C | Ø 1,5 x 1500 mm | 2.4816 (Inconel) |
| 07 02 03 | Fe-CuNi (J) | 600 °C | Ø 1,5 x 250 mm | 1.4541 / 1.4571 |
* Temperature sensors with plug are ready for the connection to temperature regulators that are equipped with a sensor socket type Binder 678, 6-pole
