HLP - High Performance Cartridge Heaters

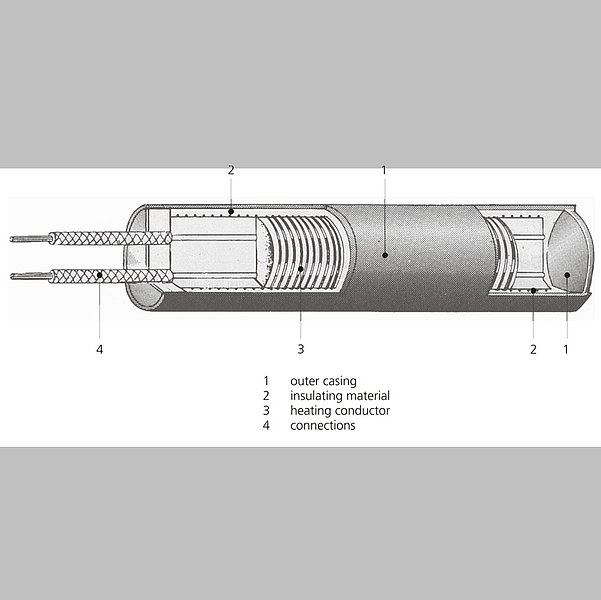

High performance cartridge heaters serve as heat conductors. They transfer the heat very quickly to the medium to be heated (solid bodies, liquids or gases). In contrast to conventional cartridge heaters, these cartridges have a heat-resistant casing of chromium-nickel-steel. The bottom of the cartridge heater is resistant to gas and corrosion, the surface is polished and metallically pure. The connection side has a ceramic closing.

There are no current-carrying parts outside the cartridge. For constructional reasons, there is an unheated zone at the top of the cartridge.

Cartridge heaters can be delivered with additional options. Please ask for your special requirements.



Technical Data

max. surface load 50 W/cm²
nominal temperature max. 750 °C
outer casing chromium-nickel steel
insulation material magnesium oxide
heating conductor nickel-chromium alloy NiCr 8020
connection silicone-impregnated glass-fiber-nickel braid

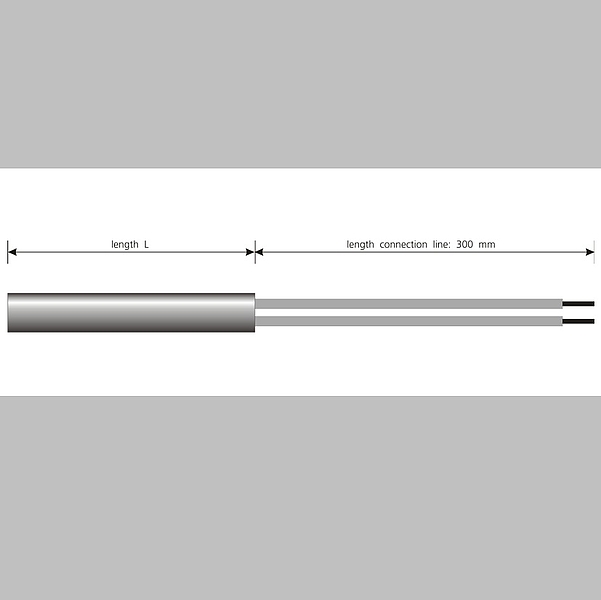

length connection line default 300 mm, other lengths are available
certifications according to VDE 0700 part 1 / EN 60335 part 1
available accessories various connection lines, right-angled connections, screwed fittings, flanges, insulating plastic tubes

Ø 6.5 mm - Lengths available from Stock with Power Ratings at 230 V

(diameter tolerance: -0.01 ... -0.03 mm)
length L [W] [W] [W] [W] [W] [W] [W] [W]
40 100 125 160 175 200
50 100 125 160 200 250
60 125 160 200 250 315
80 125 160 180 200 250 280 315 350
100 100 160 200 250 315 350 400
130 220 350
160 350 400

Ø 8 mm - Lengths available from Stock with Power Ratings at 230 V

(diameter tolerance: -0.01 ... -0.03 mm)
length L [W] [W] [W] [W] [W] [W] [W] [W]
40 100 160 200 250
50 125 160 200 250 315
60 100 125 140 160 200 250 280 315
80 160 200 250 315 400 500
100 200 250 280 315 400
130 250 315 400
160 200

Ø 10 mm - Lengths available from Stock with Power Ratings at 230 V

(diameter tolerance: -0.02 ... -0.04 mm)
length L [W] [W] [W] [W] [W] [W] [W] [W] [W]
40 100 125 200 250 315
50 100 160 200 250 315 400
60 125 160 200 250 315 400 500
80 160 200 250 315 400 500 630
100 160 200 250 315 400 500 560 630 800
130 315 400 500 630 800
160 400 630
200 400 630
250 630 800 1000

Ø 12.5 mm - Lengths available from Stock with Power Ratings at 230 V

(diameter tolerance: -0.02 ... -0.04 mm)
length L [W] [W] [W] [W] [W] [W] [W] [W]
40 100 160 200 250 315 400 0 0
50 100 125 160 200 250 315 400 500
60 125 160 200 250 315 400 500
80 200 250 315 400 500 630 800 0
100 250 315 400 500 630 800 1000 0
130 400 500 630 800 1000 0 0 0
160 500 630 800 1000 1250 0 0 0
180 800 1000 0 0 0 0 0 0
200 630 800 0 0 0 0 0 0
250 800 900 1500 0 0 0 0 0
300 600 1500 2000 0 0 0 0 0

Additional Options for HLP Cartridge Heaters

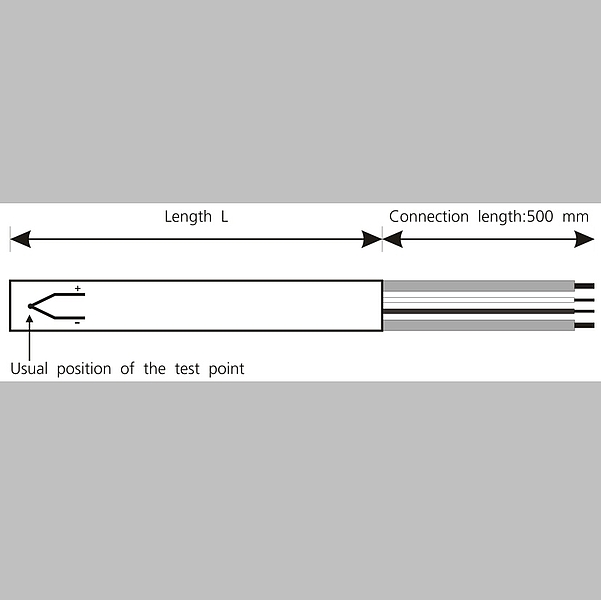

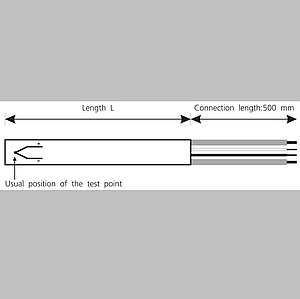

Cartridge Heaters with Integrated Temperature Sensor

Alternatively, thermoelements NiCr-Ni (K), Fe-CuNi (L) or (J) as well as Pt100 resistance thermometers can be integrated.


Cartridge Heaters with Screw-in Stainless Steel Fittings

welded on cartridge

Cartridge Ø 6.5 mm 8 mm 10 mm 12.5 mm 16 mm 20 mm
A 10 10 12 12 2 14
B 4 4 4 4 4 4
SW 12 14 17 19 24 30
Thread M 10 x 1 M 12 x 1 M 14 x 1.5 M 16x 1.5 M 20 x 1.5 M 26 x 1.5

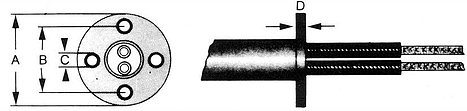

Cartridge Heaters with Stainless Steel Flanges (round)

welded on cartridge

Cartridge Ø 6.5 mm 8 mm 10 mm 12.5 mm 16 mm 20 mm
A 18 18 27 27 43 43
B 13 13 20 20 32 32
C 2.2 2.2 3.2 3.2 5.5 5.5
D 1.0 1.0 1.5 1.5 2 2

Cartridge Heaters with Stainless Steel Connection Cube

welded on cartridge

Cartridge Ø 6.5 mm 8 mm 10 mm 12.5 mm 16 mm 20 mm
A × A 10 10 15 15 20 25

Cartridge Heaters with with Silicone Power Cable

welded on cartridge
