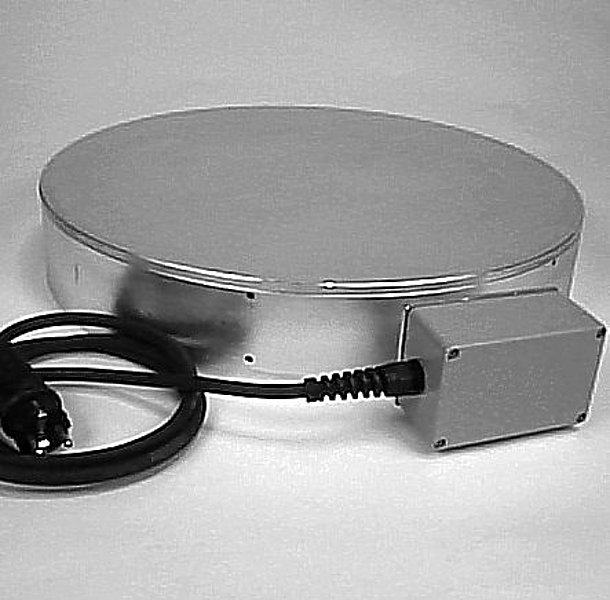

HB 20 K - Heavy and Solid Barrel Head Heating Plate

The aluminum and galvanized steel construction remains fully functional even under difficult operating conditions. The temperature regulation is installed in an aluminum casing. The temperature of the heating surface can be adjusted from 30 °C to 110 °C.

Technical Data

dimensions 520 x 88 mm
nominal voltage 230 V~
safety class I
power supply 2 m rubber hose line with safety plug
temperature range 30 °C ... 110 °C
nominal power 1300 W
protection category IP 65 (EN 60529)


Order Data

order no. 202205

Horst HB 20 K - Barrel Head Heating Plate
HB 20 K
